Product Overview

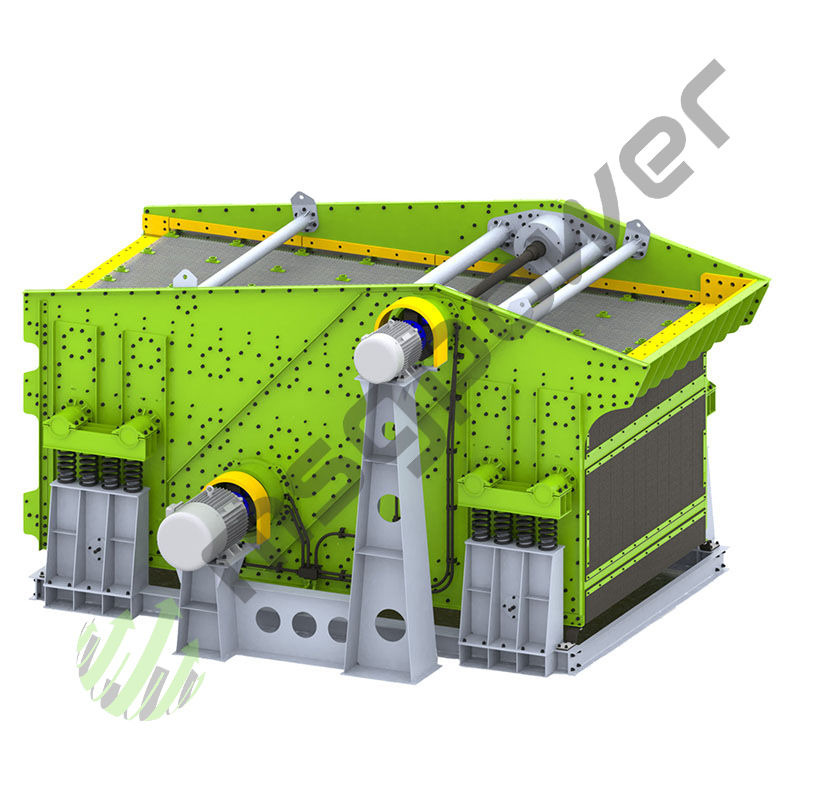

The Horizontal Vibrating Screen is a high-efficiency screening equipment designed for precise material classification in quarries, mines, building materials, coal, electric power, and chemical industries. Its advanced structural design and compact profile make it especially suitable for modern crushing and screening systems where space optimization and high throughput are required.

​

How It Works

The horizontal screen operates through an eccentric vibrator driven directly by a motor via a flexible coupling. The vibrator generates periodic motion, and through the self-synchronization principle of mechanical vibration, the screen bed achieves a stable elliptical trajectory. Two or more vibrators are arranged spatially to ensure uniform motion. As materials move along the screen surface following this high-speed elliptical path, they separate rapidly, pass through screen apertures, and advance continuously—completing the material classification process efficiently and smoothly.

​

Key Features​

• Compact layout — installation height reduced by 1.3–3 m compared to traditional screens, with conveyor length shortened by 5–20 %.

• High vibration intensity design for superior screening efficiency and reduced risk of clogging.

• Self-synchronizing vibration technology eliminates the need for synchronization gears, ensuring simpler and more reliable operation.

• Crossbeam structure undergoes stress relief and annealing after welding, with finely machined flange faces for enhanced fatigue resistance.

• Curved screen design ensures faster material dispersion, uniform material layering, and improved screening efficiency.

• Equipped with safety straps and lateral buffer devices, providing enhanced operational safety and stability.
